DYNAMIC TESTING LABORATORY

Characteristics:

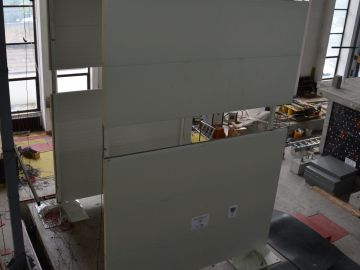

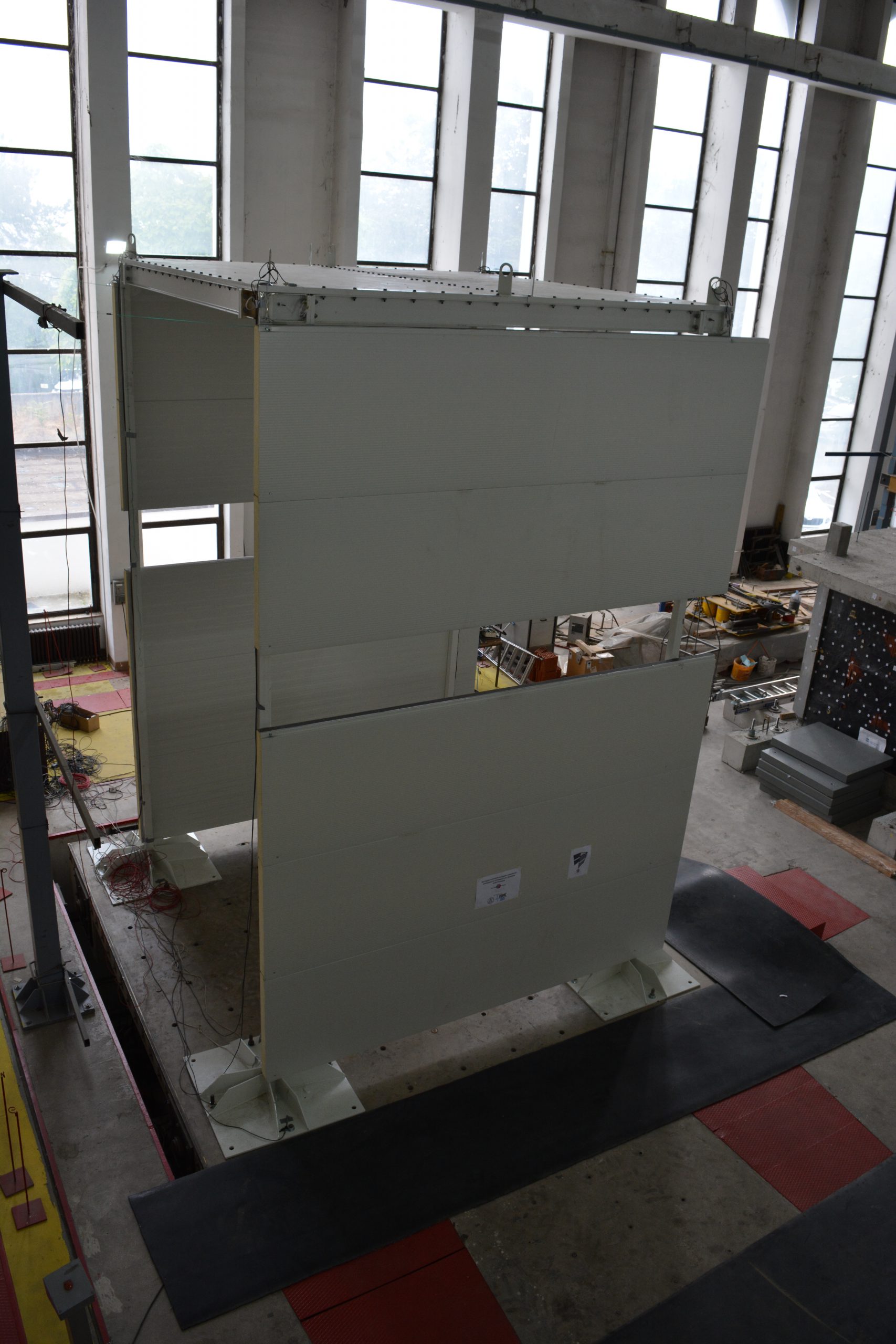

• shaking table dimensions: 5.0 x 5.0
• Weight of the shaking table 30 t
• Model weight 40 t
• Direction of excitation: horizontal, vertical or simultaneously in two directions
• Type of excitation: random, harmonic and computer generated
• Frequency range: 01-50 Hz
• Maximum displacement ± 125 mm in horizontal direction and ± 60 mm in vertical direction
• Maximum acceleration: 1.5 g in vertical direction and 3.0 g in horizontal direction.

Characteristics:

• Shaking table dimensions 1.6 x 2.0 m
• Model weight: 8 t for acceleration of 1.0 g
• Excitation direction: horizontal
• Type of excitation: random, harmonic and computer generated
• Frequency range: 0.1-80.0 Hz
• Maximum displacement: ± 100 mm

• Characteristics:
• Capacity: ± 150 kN; 120 kN and 450 kN with maximum displacement of ± 20 cm and ±30 cm.

Characteristics:

• Type of actuator: GSV-101, Geotronix, USA
• Capacity: ± 24.5kN; Type of excitation: harmonic
• Operational main resonance method
• Frequency range: 05 – 9.4 Hz
• Supported by OME actuator with capacity of 100 kN and frequency range of 2.0 – 40.0 Hz
• Precise Electromechanical amplifier for control, supported by OME.

• Model: PCB ICP 393B12
• Quantity: 16
• Range: 0.5 g

• Model: PCB ICP 333B30
• Quantity: 5
• Range: 50 g

• Model: PCB ICP 333B40
• Quantity: 8
• Range: 10 g

• Model: PCB ICP 333B50
• Quantity: 16
• Range: 5 g

• Model: Kistler 8712A5M1
• Quantity: 10
• Range: 5 g

• Model: LVDT Macro Sensors DC 750-3000
• Quantity: 9
• Range: 152 mm

• Model: LVDT Macro Sensors DC 750-1000-0006
• Quantity: 10
• Range: 50 mm

• Model: LVDT Macro Sensors DC 750-500-0006
• Quantity: 10
• Range: 25 mm

• Model: LVDT Macro Sensors DC 750-250
• Quantity: 9
• Range: 12.7 mm

• Model: LVDT Macro Sensors DC 750-5000
• Quantity: 1
• Range: 254 mm

• Model: LP WDS-500-P60-SR-U
• Quantity: 9
• Range: 500 mm

• Model: Load Cell NovaTech F317UFR0KN
• Quantity: 4
• Range: 250 kN

• Model: NI cDAQ-9188
• Quantity: 3
• Modular
• Number of slots: 8

• Model: NI cDAQ-9178
• Quantity: 1
• Modular
• Number of slots: 8

• Model: NI cDAQ-9133
• Quantity: 1
• Modular
• Number of slots: 8

• Model: NI DAQPad-6015
• Type of input: 16 analog inputs up to 200 kS/s
• Resolution: 16 bit
• Input range: ±0,05 V to ± 10.0 V.

• Model: NI 9237
• Quantity: 20
• Input type: 4 analog inputs for strain measurement
• Sampling rate: до 50 kS/s per channel
• resolution: 24 bit

• Model: NI 9234
• Quantity: 4
• Input type: 4 IEPE inputs
• Sampling rate: до 51.2 kS/s per channel
• resolution: 24 bit

• Model: NI 9205
• Quantity: 4
• Input type: voltage; 16 differential or 32 single-ended
• Sampling rate: up to 250 kS/s
• resolution: 16 bit

• Model: PXI-1006
• Number of acquisition modules: 9 x PXI-4472
• Resolution: 24 bit
• Number of channels: 72
• Sampling rate: 1 kS/s – 102.4 kS/s per channel
